Optimal separator for the hyperbola; Application to localization

Optimal separator for the hyperbola

Application to localization

Luc Jaulin

This microsite is associated to the paper

L. Jaulin (2023). Optimal separator for the hyperbola; Application to localization, arXiv, math.NA, 2305.15519.

This work proposes a minimal contractor and a minimal separator for the hyperbola in the plane. The task is facilitated using actions induced by the hyperoctahedral group of symmetries. An application related to the TDOA localization.

A zip file with the source codes (use Vibes Viewer):

Code for the simple hyperbola


from vibes import vibes
import numpy as np
from codac import *



def testHyperbola(x,q): return (q[0]+q[1]*x[0]+q[2]*x[1]+q[3]*x[0]*x[0]+q[4]*x[0]*x[1]+q[5]*x[1]*x[1]<0 )

class SepHyperbola(Sep):
    def __init__(S,q):
        Sep.__init__(S,2)
        S.q=q
    def separate(S,Xin,Xout):
        C=CtcHyperbola(S.q)
        X=Xin|Xout
        P=C.contract(X)
        if P.is_empty():
            if testHyperbola(X.mid(),S.q):  Xin=P
            else: Xout=P
            return Xin,Xout
        L=[Xout[i].rad()-P[i].rad() for i in range(0,len(X))]
        w=np.max(L)
        i = L.index(w)
        e1=P[i].lb()-Xout[i].lb()
        e2=Xout[i].ub()-P[i].ub()
        if e1+e2<=0.00000000001: return Xin,Xout  #no significant improvement
        Q = X.copy()
        R = X.copy()
        if e2>e1:
            Q[i]=Interval(P[i].ub(),X[i].ub())
            R[i]=Interval(X[i].lb(),P[i].ub())
        else:
            Q[i]=Interval(X[i].lb(),P[i].lb())
            R[i]=Interval(P[i].lb(),X[i].ub())
        if testHyperbola(Q.mid(),S.q):  Xin=R
        else:  Xout=R
        return Xin,Xout

def ψ(e):
    e=vect2matsym(e)
    Q=[1,e[0,0]*2+e[1,0]*3 ,e[0,1]*2+e[1,1]*3 , e[0,0]**2*4+e[1,0]**2*6 , (e[0,0]*e[1,1]+e[0,1]*e[1,0])*5 , e[0,1]**2*4+e[1,1]**2*6]
    Q=(np.rint(Q)).astype(int)
    return Q



class CtcHyperbola(Ctc):
    def __init__(C,q):
        Ctc.__init__(C,2)
        C.q=q
    def contract(C,X):
        def C1(s,X): return CtcHyperbolaSym(s,C.q).contract(X)
        def C2(s,X): return C1(s,X)&C1([s[1],s[0]],X)
        return C2([1,2],X)|C2([1,-2],X)|C2([-1,2],X)|C2([-1,-2],X)

class CtcHyperbolaSym(Ctc):
    def __init__(C,s,q):
        Ctc.__init__(C,2)
        C.s,C.q=s,q
    def contract(C,X):
        return ctcActionSym(CtcHyperbola0(octasym(ψ(C.s))(C.q)),C.s,X)



class CtcHyperbola0(Ctc):
    def __init__(C,q):
        Ctc.__init__(C,2)
        E=Interval(0,0)
        C.Q=[q[0]+E,q[1]+E,q[2]+E,q[3]+E,q[4]+E,q[5]+E]
    def contract(C,X):
        def φ1(Q,X2):
            a1,b1,c1=Q[3],Q[1]+Q[4]*X2,Q[0]+Q[2]*X2+Q[5]*sqr(X2)
            D1=b1**2-4*a1*c1
            D1=D1&Interval(0,oo)
            return (-b1+sign(Q[3])*sqrt(D1))/(2*a1)
        def ɸ1(Q,X2,Card):
            R=Interval.EMPTY_SET
            for x2_ in [φ1(Q,Interval(X2.lb())),φ1(Q,Interval(X2.ub()))]: R=R|x2_
            for P in Card:
                if not ((X2&P[1]).is_empty()) : R=R|(φ1(Q,P[1]))
            return R
        def Cardinals(Q):
            def rho(Q):
                a2,b2,c2=4*Q[3]*Q[5]-Q[4]**2,4*Q[3]*Q[2]-2*Q[1]*Q[4],4*Q[3]*Q[0]-Q[1]**2
                D2=b2**2-4*a2*c2
                R=(-b2+sqrt(D2)*Interval(-1,1))/(2*a2)
                R1=(-b2-sqrt(D2))/(2*a2)
                R2=(-b2+sqrt(D2))/(2*a2)
                if R1.ub() < R2.lb(): return R1,R2
                if R2.ub() < R1.lb(): return R2,R1
                return R,R

            X2lb,X2ub=rho(Q)
            Card=[[φ1(Q,X2lb),X2lb]]
            Card.append([φ1(Q,X2ub),X2ub])
            Q=[Q[0],Q[2],Q[1],Q[5],Q[4],Q[3]]
            X1lb,X1ub=rho(Q)
            Card.append([X1ub,φ1(Q,X1ub)])
            Card.append([X1lb,φ1(Q,X1lb)])
            return Card
        Card=Cardinals(C.Q)
        X[0]=X[0]&ɸ1(C.Q,X[1],Card)
        return X


def notAnHyperbola(q):
    if q[3]*q[5]-(1/4)*q[4]**2 >= 0:
        print ("not an hyperbola")
        return True


def sivia_hyperbola(X,q):
    if notAnHyperbola(q): return
    S=SepHyperbola(q)
    SIVIA(X,S,0.1,color_map=col0)


X=IntervalVector([[-2,2],[-2,2]])
q=[-1,1,1,3,30,-2]
#q=[-1,5,2,-2,30,-2]
sivia_hyperbola(X,q)

Code for the TDOA application with a classical forward-backward approach


def TDOA_classic(X):
    def SepHyp(q):
        _g="q5*sqr(x2)+q4*x1*x2+q3*sqr(x1)+q2*x2+q1*x1+q0"
        _g=_g.replace("q0",str(q[0])).replace("q1",str(q[1])).replace("q2",str(q[2])).replace("q3",str(q[3])).replace("q4",str(q[4])).replace("q5",str(q[5]))
        g=Function('x1','x2',_g)
        return SepFwdBwd(g,Interval([-oo,0]))
    S1=SepHyp([2250.391900000008, 1732.1199999999992, -2581.3200000000006, -74.35999999999996, -72, 245.64000000000004])
    S2=SepHyp([3568.7279000000153, 1514.519999999998, -2747.7200000000016, -61.55999999999989, -72, 258.4400000000001])
    S3=SepHyp([-1814.2640999999846, -108.35999999999854, 621.7200000000006, 24.840000000000018, -72, 24.840000000000018])
    S4=SepHyp([-28.696099999977775, -293.95999999999935, 512.9200000000012, 31.240000000000023, -72, 31.240000000000023])
    S12=S1&~S2
    S34=S3&~S4
    SIVIA(X,S12&S34,0.05,color_map=col0)

vibes.beginDrawing()
X=IntervalVector([[0,20],[0,20]])
TDOA_classic(X)
vibes.endDrawing()

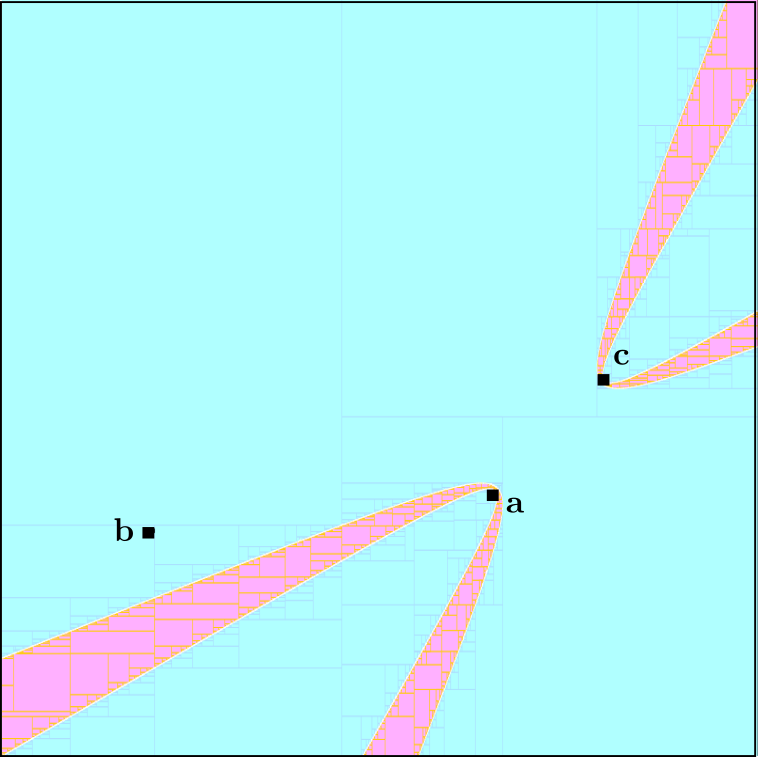

Code for the TDOA application with the minimal hyperbola separator



class SepHyperbolaFoci(Sep):
    def __init__(S,a1,a2,b1,b2,l):
        Sep.__init__(S,2)
        S.a1,S.a2,S.b1,S.b2=a1,a2,b1,b2
        S.l=l& sqrt((a1-b1)**2+(a2-b2)**2) * Interval(-1,1)
    def separate(S,Xin,Xout):
        def q(a1,a2,b1,b2,l):
            q0=-a1**4-2*a1**2*a2**2+2*a1**2*b1**2+2*a1**2*b2**2+2*a1**2*l**2-a2**4+2*a2**2*b1**2+2*a2**2*b2**2+2*a2**2*l**2-b1**4-2*b1**2*b2**2+2*b1**2*l**2-b2**4+2*b2**2*l**2-l**4
            q1=4*a1**3-4*a1**2*b1+4*a1*a2**2-4*a1*b1**2-4*a1*b2**2-4*a1*l**2-4*a2**2*b1+4*b1**3+4*b1*b2**2-4*b1*l**2
            q2=4*a1**2*a2-4*a1**2*b2+4*a2**3-4*a2**2*b2-4*a2*b1**2-4*a2*b2**2-4*a2*l**2+4*b1**2*b2+4*b2**3-4*b2*l**2
            q3=-4*a1**2+8*a1*b1-4*b1**2+4*l**2
            q4=-8*a1*a2+8*a1*b2+8*a2*b1-8*b1*b2
            q5=-4*a2**2+8*a2*b2-4*b2**2+4*l**2
            return [q0,q1,q2,q3,q4,q5]
        X=Xin|Xout

        S1=SepHyperbola(q(S.a1,S.a2,S.b1,S.b2,S.l.lb()))
        S2=SepHyperbola(q(S.a1,S.a2,S.b1,S.b2,S.l.ub()))

        #S=S1|~S2  # should work but did not, I had to decompose
        Xin1,Xout1=S1.separate(X,X)
        Xout2,Xin2=S2.separate(X,X)
        Xin=Xin1|Xin2
        Xout=Xout1&Xout2
        #Xin,Xout=S.separate(X,X)
        return Xin,Xout

def TDOA(X,Y1,Y2):
    a1,a2=13,7
    b1,b2=4,6
    c1,c2=16,10
    Se1=SepHyperbolaFoci(a1,a2,b1,b2,Y1)
    Se2=SepHyperbolaFoci(a1,a2,c1,c2,Y2)
    Se=Se1&Se2
    SIVIA(X,Se2,0.05,color_map=col0})
    draw_tiny_box(a1,a2,'black[black]',0.05)
    draw_tiny_box(c1,c2,'black[black]',0.05)
    draw_tiny_box(b1,b2,'black[black]',0.05)
    #draw_box(Interval(-6,6),Interval(-6,6),'black[transparent]')
    draw_tiny_box(0,0,'black[black]',0.002)
    vibes.drawLine([[X[0].lb(),0],[X[0].ub(),0]],'black')
    vibes.drawLine([[0,X[1].lb()],[0,X[1].ub()]],'black')
    vibes.drawBox(X[0].lb(),X[0].ub(),X[1].lb(),X[1].ub(),'black[transparent]')


X=IntervalVector([[0,20],[0,20]])
Y1,Y2=Interval(8-eps,8+eps),Interval(4-eps,4+eps)
TDOA(X,Y1,Y2,0.05)

Other functions



col0={SetValue.IN: "#FFCC00[#FFAAFFEE]", SetValue.OUT: "#AADDFF[#AAFFFFEE]",SetValue.UNKNOWN: "yellow[white]"}


def toBox(X):
    if type(X)==list: X=IntervalVector(X)
    return(X)

def draw_box(X,Y,col='darkblue'):
    vibes.drawBox(X.lb(),X.ub(),Y.lb(),Y.ub(),col)



def draw_tiny_box(x,y,col='darkblue',eps=0.02):
    X=Interval(x-eps,x+eps)
    Y=Interval(y-eps,y+eps)
    draw_box(X,Y,col)



def octasym(I): return lambda L : [(1.0*np.sign(I[i]))*L[np.abs(I[i])-1] for i in range(0,len(I))]

def sym(X,s):
    b=True if type(X)==list else False
    X=toBox(X)
    if b: return s([X[i] for i in range(0,len(X))])
    else: return IntervalVector(s([X[i] for i in range(0,len(X))]))

def ctcAction(C,s,_s,X): return sym(C.contract(sym(X,s)),_s)

def ctcActionSym(C,I,X):
    s=octasym(I)
    _s=octasym(invertsym(I))
    return ctcAction(C,s,_s,X)

def vect2matsym(s):
    n=len(s)
    M=np.zeros([n,n])
    for i in range(n):
        e=np.sign(s[i])
        j=np.abs(s[i])-1
        M[j][i]=e
    return M


def mat2vectsym(M):
    n=len(M)
    v=[]
    for j in range(n):
        for i in range(n):
            if not(M[i,j]==0): v.append(np.int(np.sign(M[i,j])*(i+1)))
    return(v)

def mult2vectsym_via_mat(v1,v2):
    M1=vect2matsym(v1)
    M2=vect2matsym(v2)
    M=M1@M2
    v=mat2vectsym(M)
    return v

def invertsym(v):
    M=vect2matsym(v)
    N = np.linalg.inv(M)
    return mat2vectsym(N)
